American Zettler’s industry-leading offering of “solar” relays are designed to be used in high power sources such as: power amplifiers, solar inverters, wind inverters, electric vehicle charging, or any application requiring high loads to be switched and carried. Read more at www.zettlersolarrelays.com.
These are our series standard parts, for custom solutions contact us.
| Series | Image | Amperage | Type | Approvals | Epoxy Sealed | |
|---|---|---|---|---|---|---|
| AZ160 |  |  | 60A | SPST | UL/CUR, TUV | No |
| AZ2150W |  | | 30A | SPST | UL/CUR/VDE | Yes |

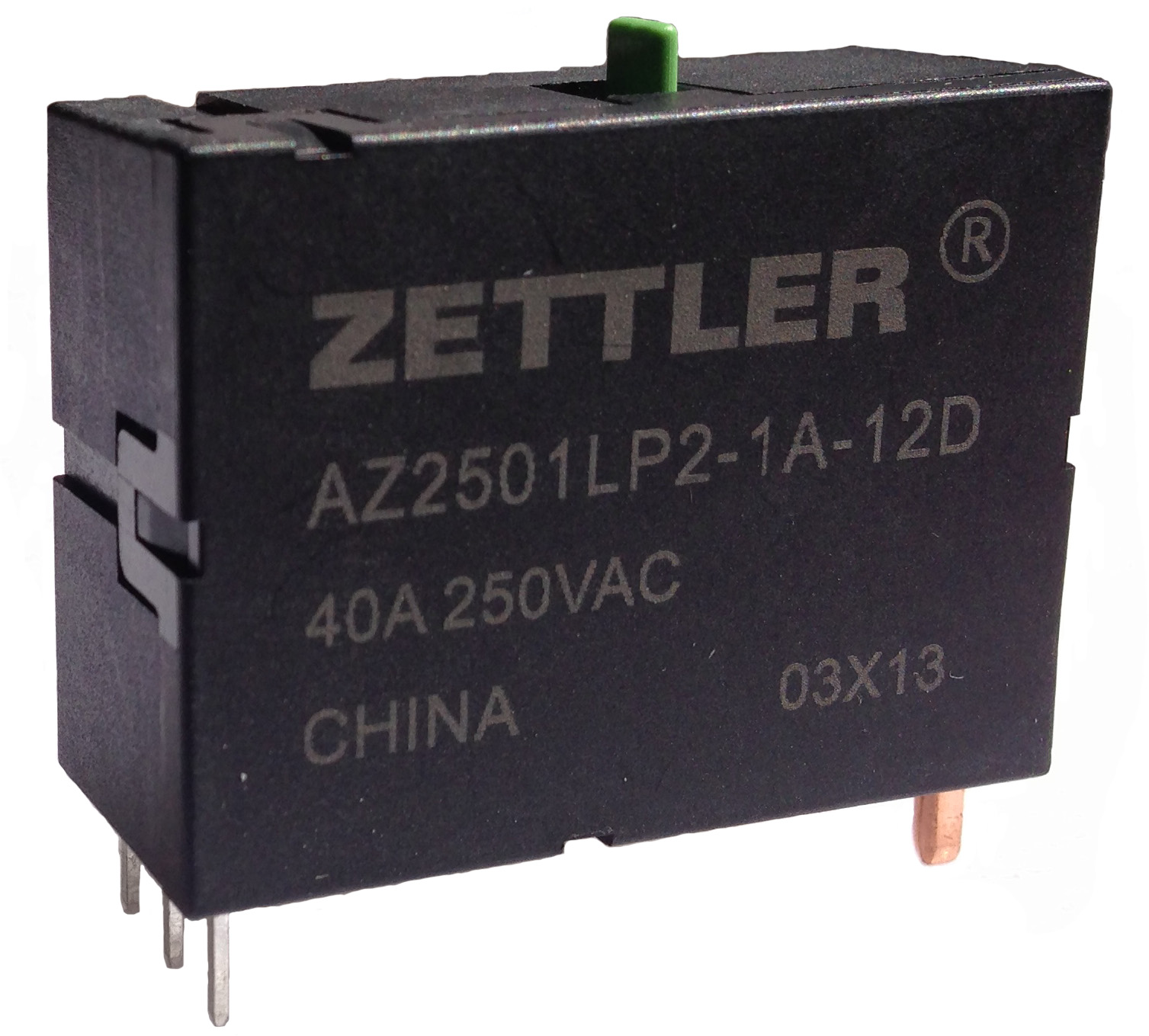

| AZ2501L |  | | 60A | SPST/SPDT | UL/CUR | No |
| AZ2704 |  | | 30A | SPST/DPST | UL/CUR/TUV | No |
| AZ2800 |  | | 40A | DPST/DPDT | UL/CUR | Yes |

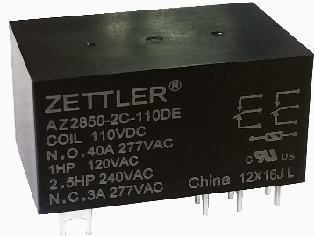

| AZ2850 |  | | 40A | DPST/DPDT | UL/CUR | Yes |

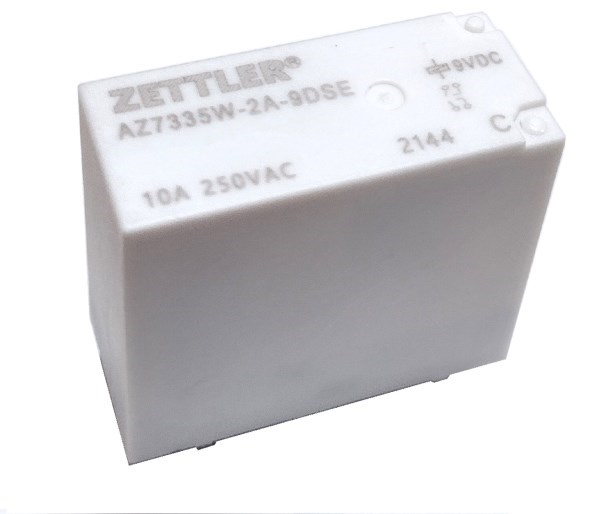

| AZ7335W |  | | 10A | DPST/DPDT | UL/CUR | Yes |

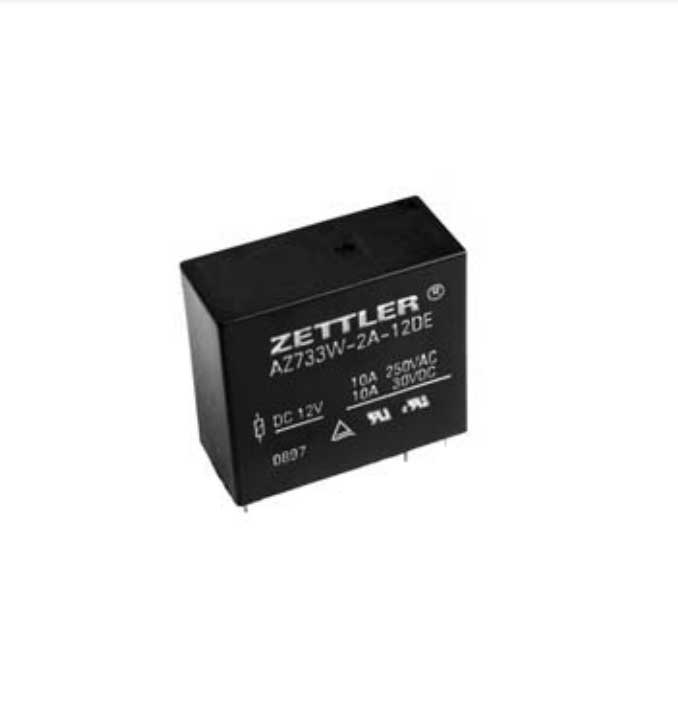

| AZ733W |  | | 12A | DPST | UL/CUR/TUV | Yes |
| AZ742 |  | | 10A | DPST/DPDT | UL/CUR/VDE | Yes |

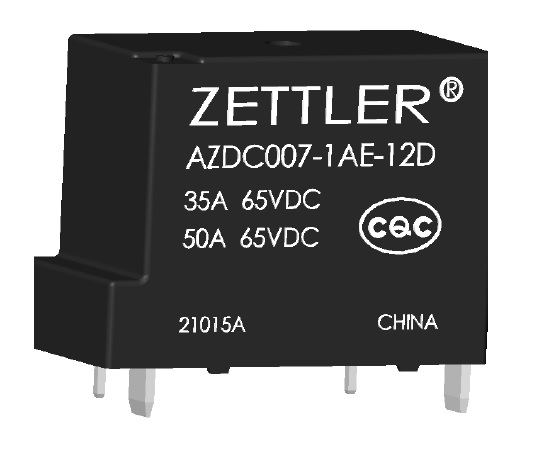

| AZDC007 |  | | 50A | SPST | CQC | No |
| AZDC6 |  | | 12.5A | DPST | CSA | No |
| AZEV116 |  | | 16A | SPST | UL/TUV | No |

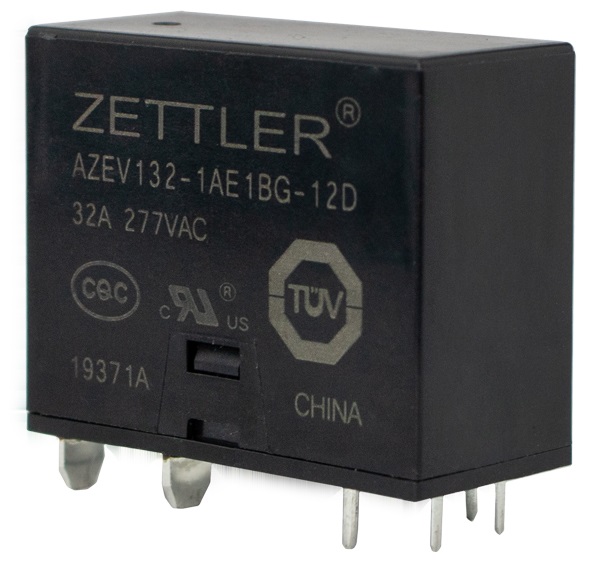

| AZEV132 |  | | 32A | SPST | UL/TUV | No |

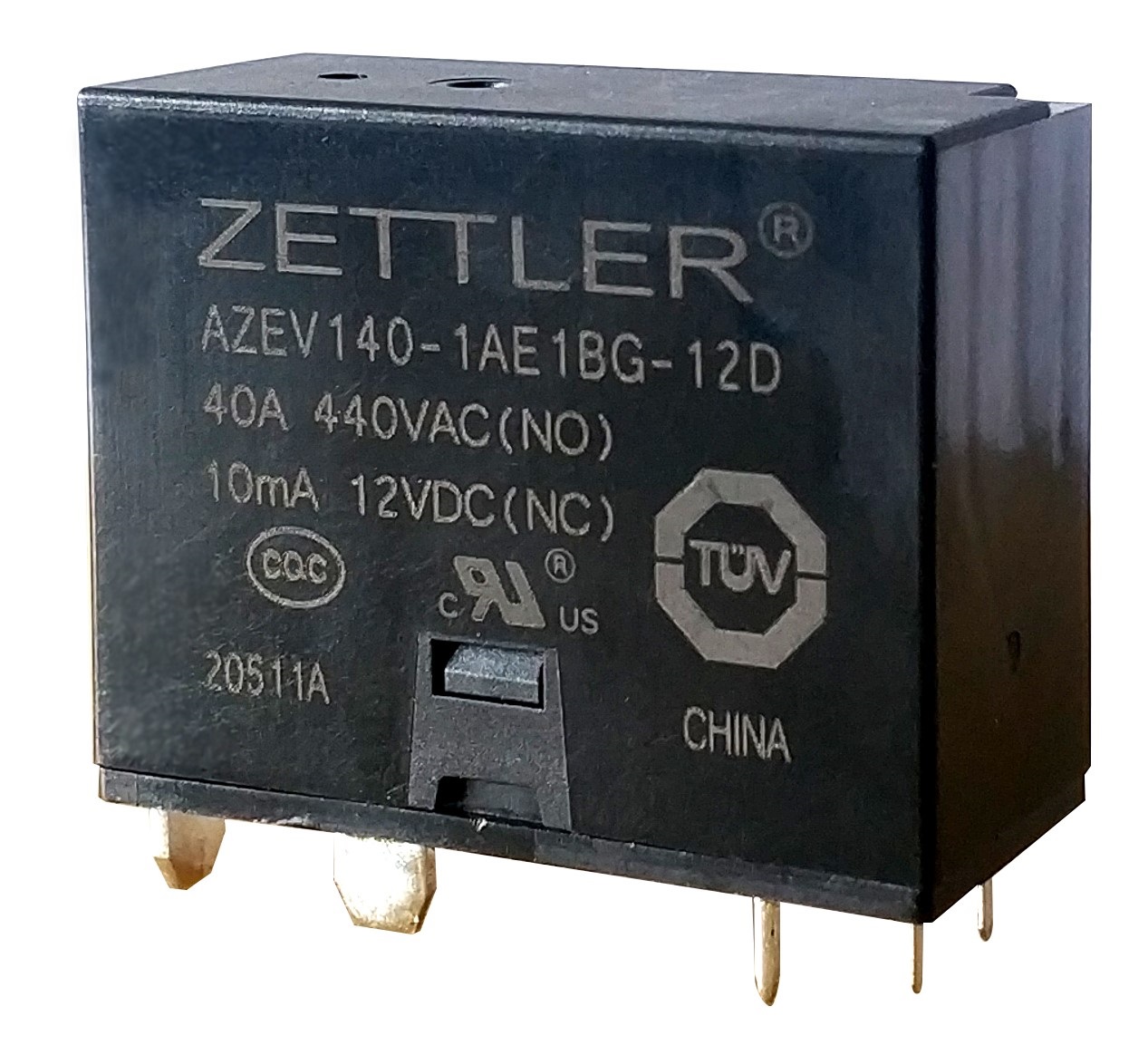

| AZEV140 |  | | 40A | SPST | UL/TUV | No |

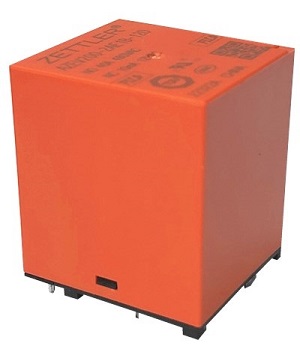

| AZEV200 |  | | 40A | DPST | UL/TUV/CQC | No |
| AZPRD |  | | 50A | 1 Form A,B,C,X,Y, 2 Form A,B,C | UL/CUR | No |
| AZSR1160 |  | | 160A | SPST | UL/CUR, VDE | No |
| AZSR1180 |  | | 180A | SPST | UL/CUR, VDE | No |

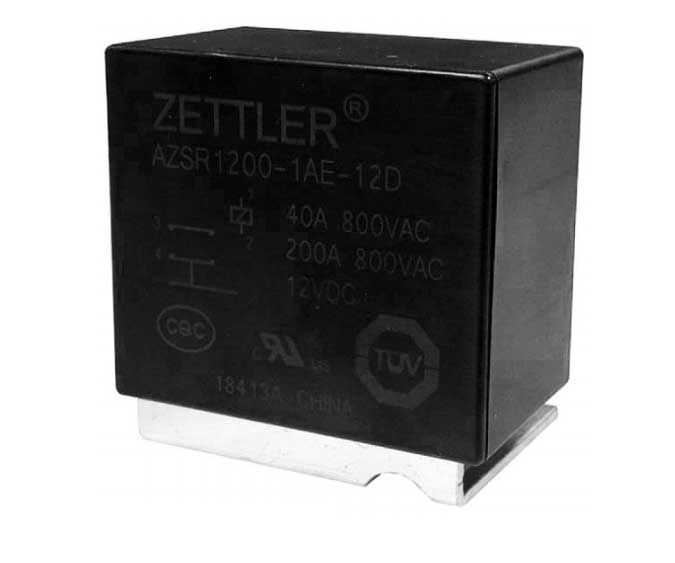

| AZSR1200 |  | | 200A | SPST | UL/CUR, VDE | No |

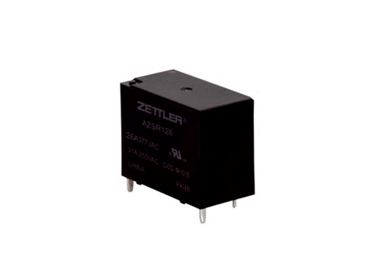

| AZSR126 |  | | 26A | SPST | - | No |

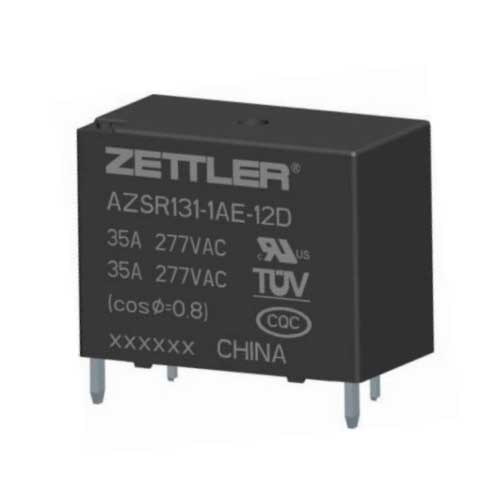

| AZSR131 |  | | 35A | SPST | UL/CUR, TUV | No |

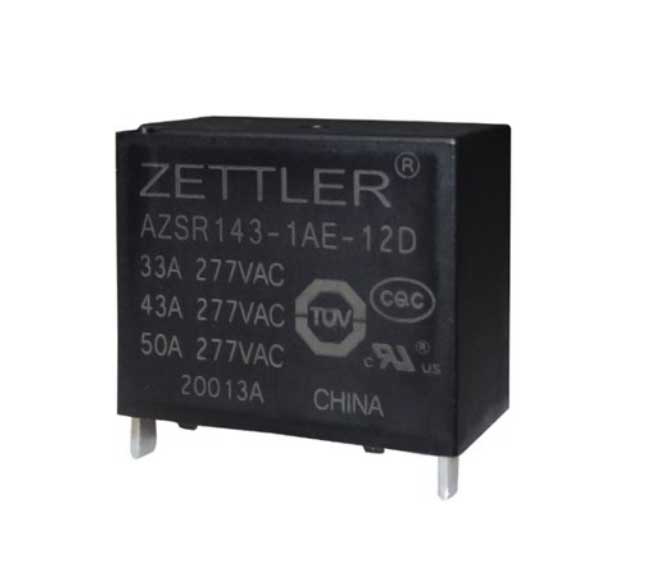

| AZSR143 |  | | 50A | SPST | UL/CUR, TUV | No |

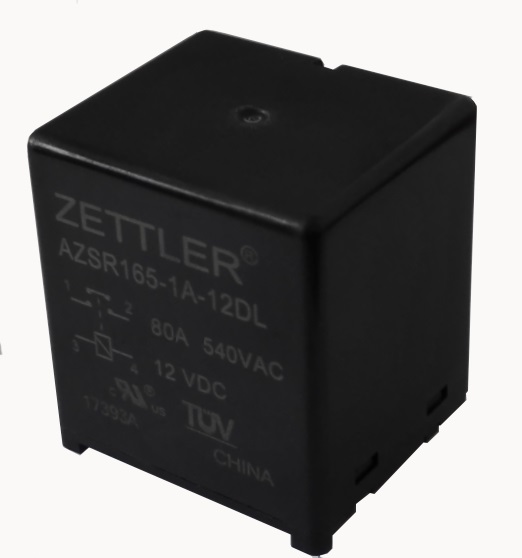

| AZSR165 |  | | 80A | SPST | UL/TUV | No |

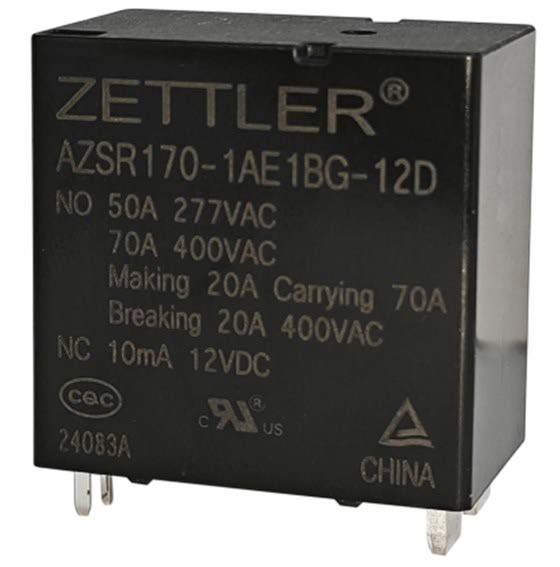

| AZSR170 |  | | 70A | SPST | UL/CUR, TUV, CQC | No |

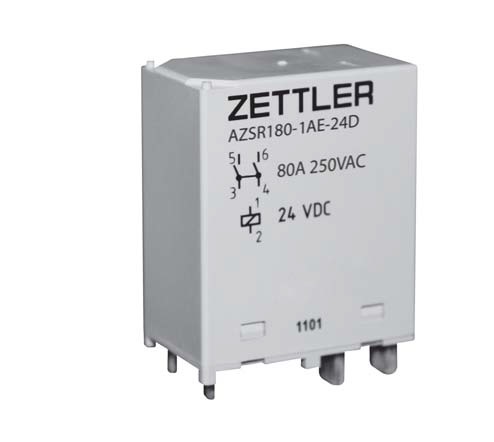

| AZSR180 |  | | 80A | SPST | UL/CUR, VDE | No |

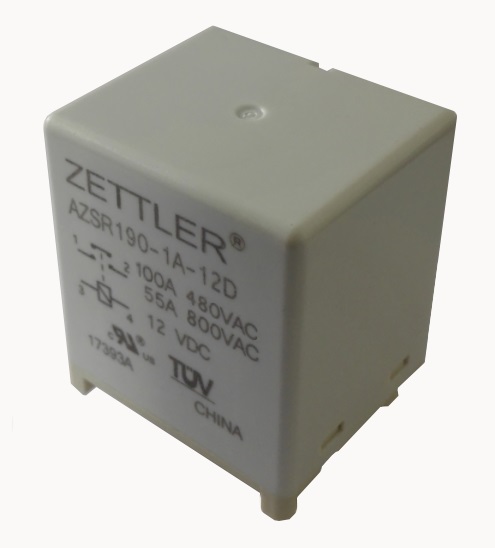

| AZSR190 |  | | 100A | SPST | UL/TUV | No |
| AZSR235 |  | | 35A | SPST/DPST | UL/CUR, VDE | No |

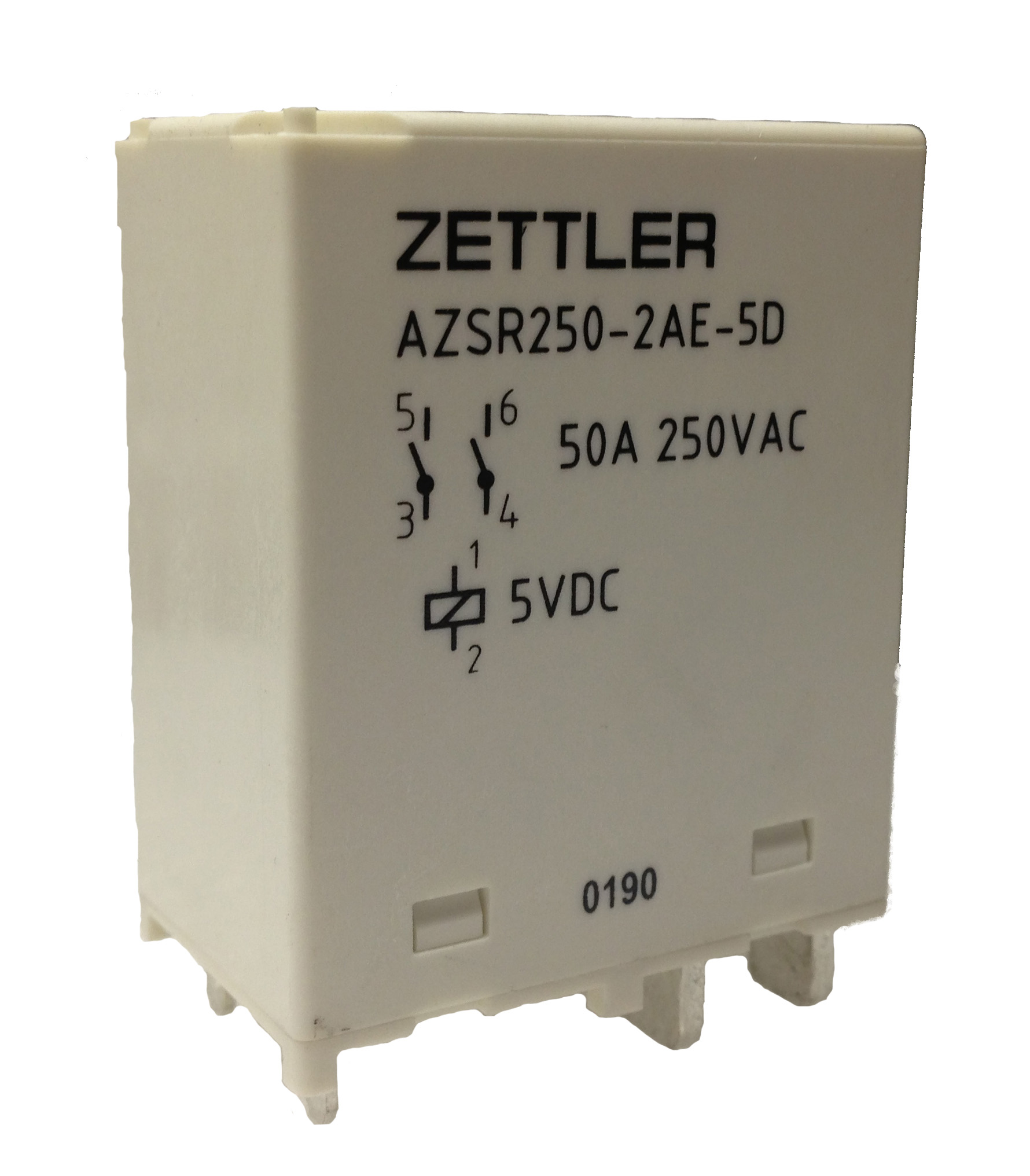

| AZSR250 | | | 55A | SPST/DPST | UL/CUR, VDE | No |
| XMC0 |  | | 25-90A | SPST/SPDT w/shunt DPST, 3PST, 4PST | UL/CUR | No |
