Power Electromechanical Relays
As a world leader in relays for HVAC/R, motor control, and power designs, American Zettler has a power relay to suit the needs of the most demanding circuits and environments.
DPST/DPDT 15A
DPST/DPDT 12A
SPST/SPDT 20A
SPST/SPDT 20A
SPST/SPDT 40A
SPST/SPDT 40A| Series | Image | Amperage | Type | Approvals | Epoxy Sealed | |
|---|---|---|---|---|---|---|
| AZ160 |  |  | 60A | SPST | UL/CUR, TUV | No |
| AZ164 |  | | 15A | DPDT-4PDT | UL/CUR | No |
| AZ1641 |  | | 5-20A | 1-4PDT | UL/CUR | No |
| AZ165 |  | | 15A | DPDT-4PDT | UL/CUR | No |
| AZ1651 |  | | 5-20A | 1-4PDT | UL/CUR | No |
| AZ166 |  | | 15A | DPDT-4PDT | UL/CUR | No |
| AZ1661 |  | | 5-20A | 1-4PDT | UL/CUR | No |

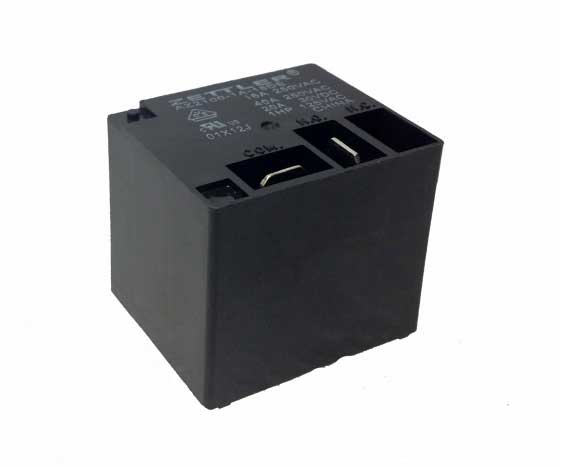

| AZ2100 |  | | 40A | SPDT/SPDT | UL/CUR/VDE | Yes |
| AZ21001 |  | | 50A | SPST/SPDT | UL/CUR | Yes |
| AZ2110 |  | | 40A | SPST/SPDT | UL/CUR/VDE | No |
| AZ2120 |  | | 40A | SPST/SPDT | UL/CUR/VDE | No |

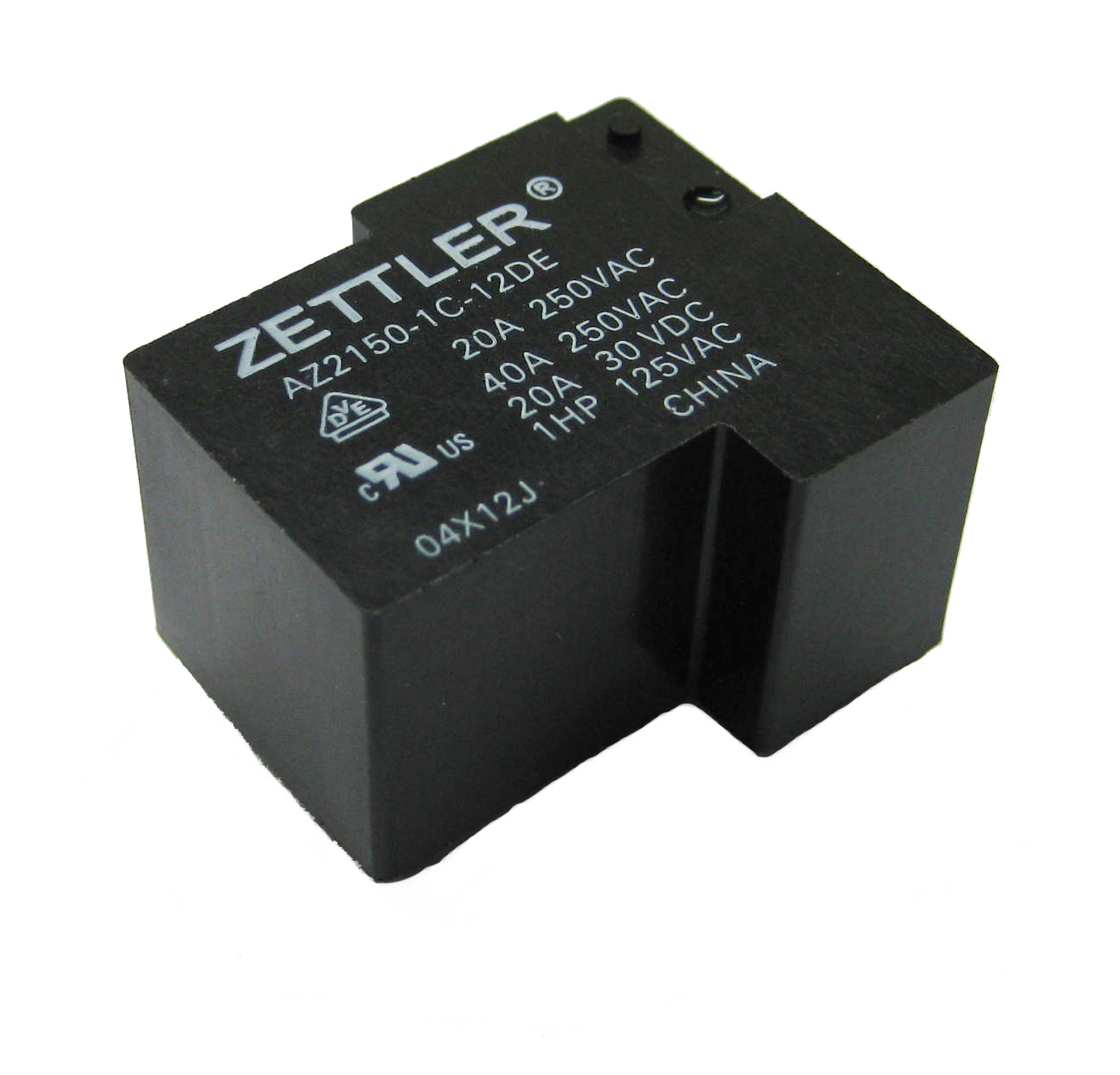

| AZ2150 |  | | 40A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ21501 |  | | 50A | SPST/SPDT | UL/CUR | Yes |

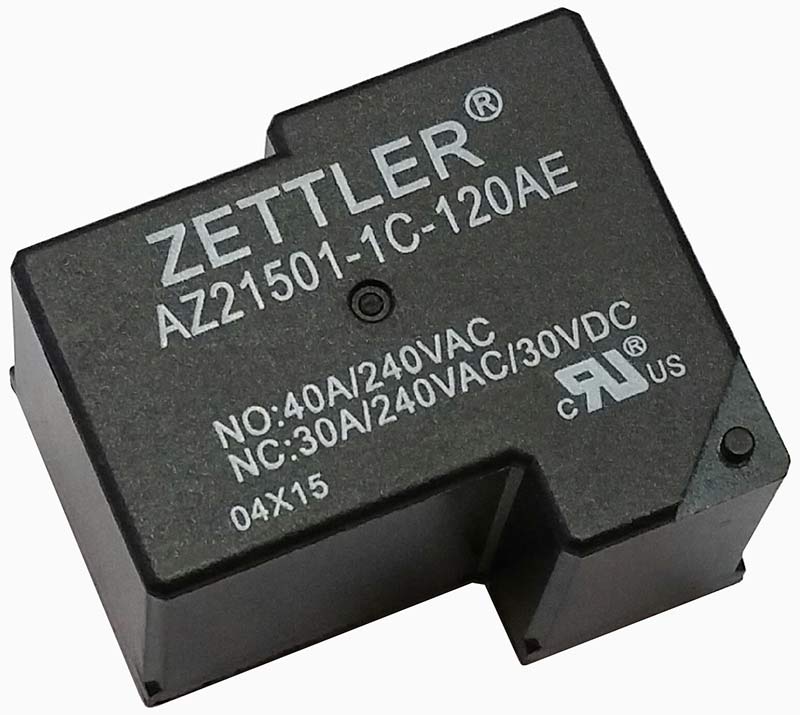

| AZ21501P |  | | 50A | SPST/SPDT | UL/CUR | Yes |
| AZ2150W |  | | 30A | SPST | UL/CUR/VDE | Yes |
| AZ2151 |  | | 40A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ2160 |  | | 40A | SPST/SPDT | UL, CUR | Yes |
| AZ2161 | | | 40A | SPST/SPDT | UL, CUR | Yes |
| AZ2270 |  | | 30A | SPST/SPDT | UL, CUR | Yes |

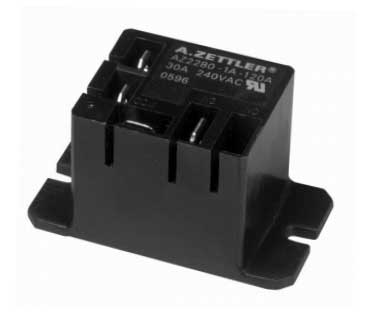

| AZ2280 |  | | 40A | SPST/SPDT | UL/CUR | Yes |
| AZ22801 |  | | 40A | 1 Form A,B,C, | UL/CUR | Yes |
| AZ2310 |  | | 30A | SPST | UL/CUR | No |
| AZ2501 |  | | 50A | SPST/SPDT | UL/CUR | Yes |
| AZ2501L |  | | 60A | SPST/SPDT | UL/CUR | No |
| AZ2700 |  | | 30A | SPST/DPST | UL/CUR/TUV | No |
| AZ2701 |  | | 30A | SPST/DPST | UL/CUR/TUV | No |
| AZ2702 |  | | 30A | SPST/DPST | UL/CUR/TUV | Yes |
| AZ2703 |  | | 30A | SPST/DPST | UL/CUR/TUV | Yes |
| AZ2704 |  | | 30A | SPST/DPST | UL/CUR/TUV | No |
| AZ2705 |  | | 30A | SPST/DPST | UL/CUR | No |
| AZ2800 |  | | 40A | DPST/DPDT | UL/CUR | Yes |
| AZ2850 |  | | 40A | DPST/DPDT | UL/CUR | Yes |
| AZ576 |  | | 20A | SPST/SPDT | UL/TUV | Yes |
| AZ576P |  | | 20A | 1 Form A, B, C | UL/TUV | Yes |
| AZ673 |  | | 10A | SPST | UL/CUR | Yes |
| AZ6951 |  | | 5A | SPST | UR/CUR | Yes |
| AZ696 |  | | 10A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ6962 |  | | 10A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ697 |  | | 10A | SPST/SPDT | UL/CUR/TUV | Yes |
| AZ6975 |  | | 10A | SPST/SPDT | UL/CUR | Yes |
| AZ6991 |  | | 6A | DPST/DPDT | UL/CUR | Yes |
| AZ733 |  | | 12A | DPST/DPDT | UL/CUR/TUV | Yes |
| AZ7335 |  | | 8A | DPST/DPDT | UL/CUR | Yes |
| AZ7335W |  | | 10A | DPST/DPDT | UL/CUR | Yes |
| AZ733W |  | | 12A | DPST | UL/CUR/TUV | Yes |
| AZ742 |  | | 10A | DPST/DPDT | UL/CUR/VDE | Yes |
| AZ743 |  | | 10A | DPST/DPDT | UL/CUR/VDE | Yes |
| AZ755 |  | | 20A | SPDT | UL/CUR/TUV | Yes |
| AZ7555 |  | | 20A | SPST/SPDT | UL/CUR | Yes |

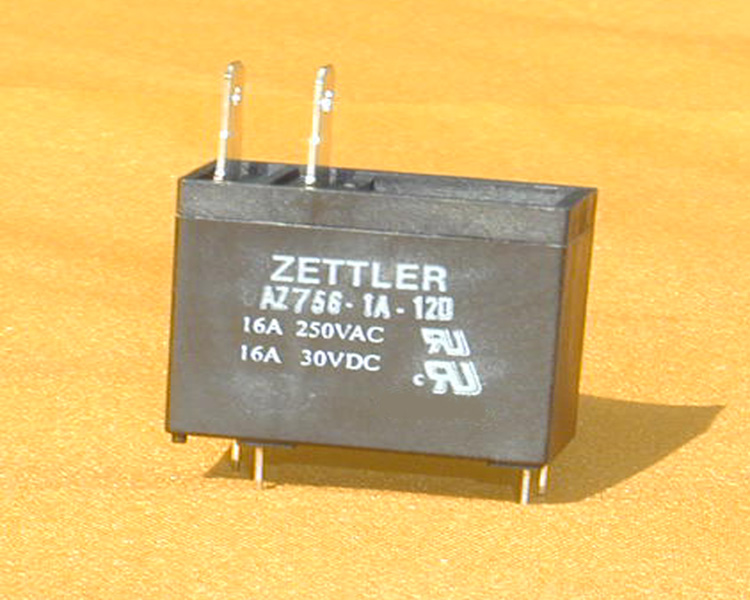

| AZ756 |  | | 20A | SPST/SPDT | UL/CUR/TUV | No |
| AZ757 |  | | 20A | SPST | UL/CUR | Yes |
| AZ761 |  | | 12A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ762 |  | | 16A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ7621 |  | | 16A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ7621H |  | | 20A | SPST/SPDT | UL/CUR | Yes |
| AZ7621P |  | | 16A | SPST/SPDT | UL/CUR | Yes |
| AZ762F |  | | 20A | SPST/SPDT | UL/CUR/VDE | No |
| AZ762H |  | | 16A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ762P |  | | 20A | SPST/SPDT | UL/CUR | Yes |
| AZ762T |  | | 16A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ763 |  | | 12A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ764 |  | | 16A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ767 |  | | 3A | SPDT | UL/CUR | Yes |
| AZ769 |  | | 25A | SPST | UL/CUR | No |
| AZ7695 |  | | 25A | SPST | UL/CUR | Yes |
| AZ770 |  | | 5A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ7705 |  | | 5A | SPST | UL/CUR | Yes |

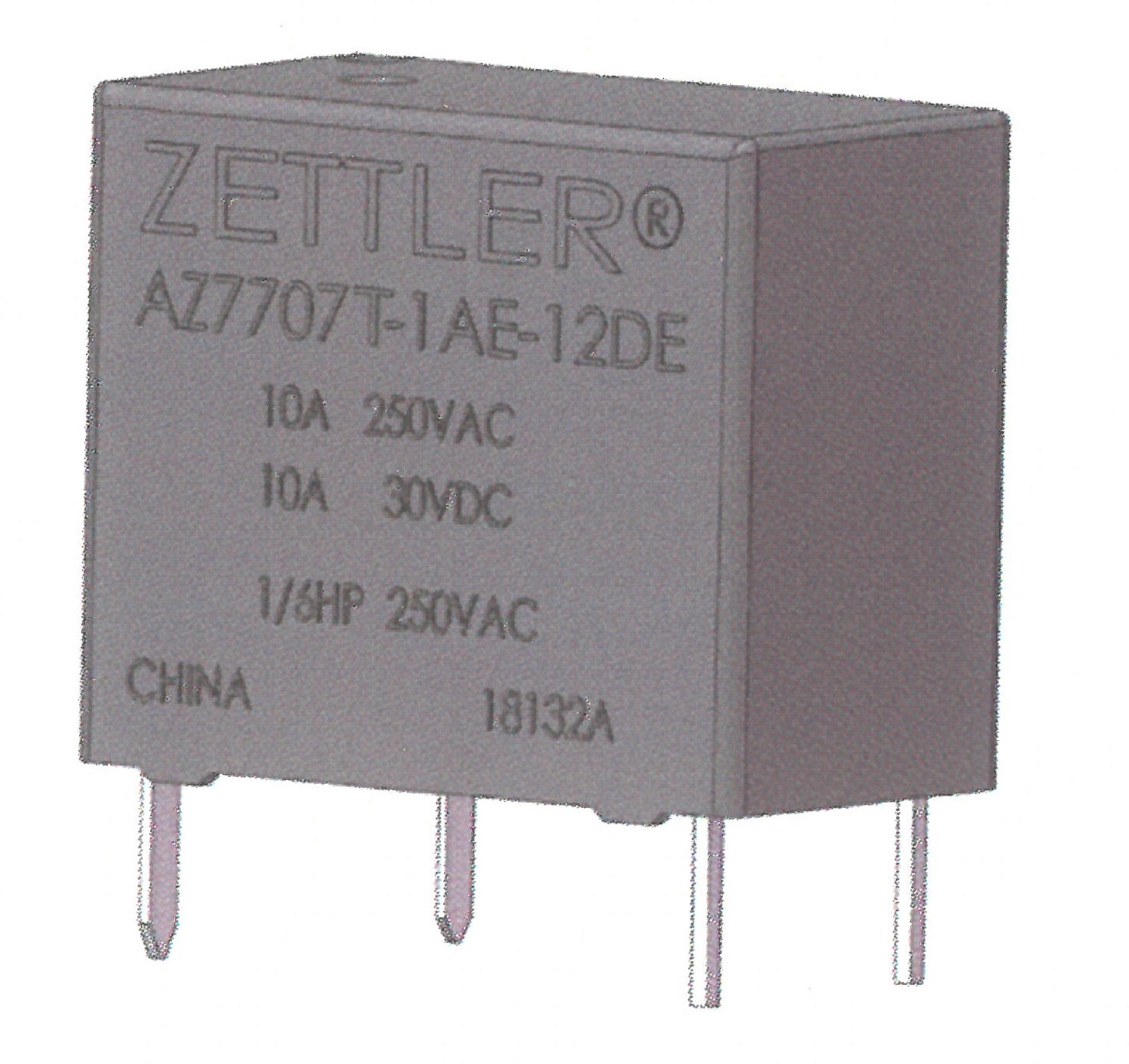

| AZ7707 |  | | 10A | SPST | UL/CUR | Yes |
| AZ8 |  | | 3-6A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ888 |  | | 8A | SPST/DPST/SPST-NO+SPST-NC | UL/CUR | Yes |
| AZ8A |  | | 10A | SPDT | UL/CUR | Yes |
| AZ900 |  | | 30A | 1 Form A,B,C,X,Y, 2 form A,B,C | UL/CUL | No |
| AZ932 |  | | 15A | SPST-NO/SPST-NC/SPDT | UL/CUR | Yes |
| AZ9321 |  | | 20A | SPST/SPDT | UL/CUR | Yes |
| AZ940 |  | | 10A | SPST/SPDT | UL/CUR/VDE | Yes |
| AZ9402 |  | | 10A | SPST/SPDT | - | Yes |

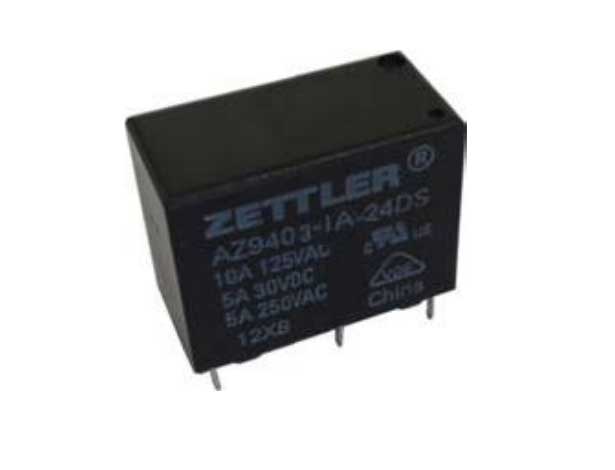

| AZ9403 |  | | 10A | SPST/SPDT | UL/CUR/VDE | Yes |

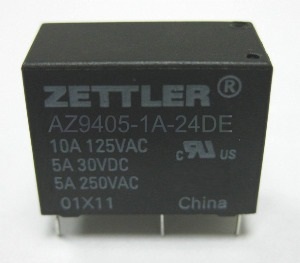

| AZ9405 |  | | 10A | SPST/SPDT | UL/CUR | Yes |
| AZ942 |  | | 16A | SPST/SPDT | UL/CUR | No |
| AZ9421A |  | | 20A | SPDT | - | Yes |
| AZ9422 |  | | 20A | SPST/SPDT | UL/CUR/TUV | Yes |
| AZ942H |  | | 16A | SPST/SPDT | UL/CUR | Yes |

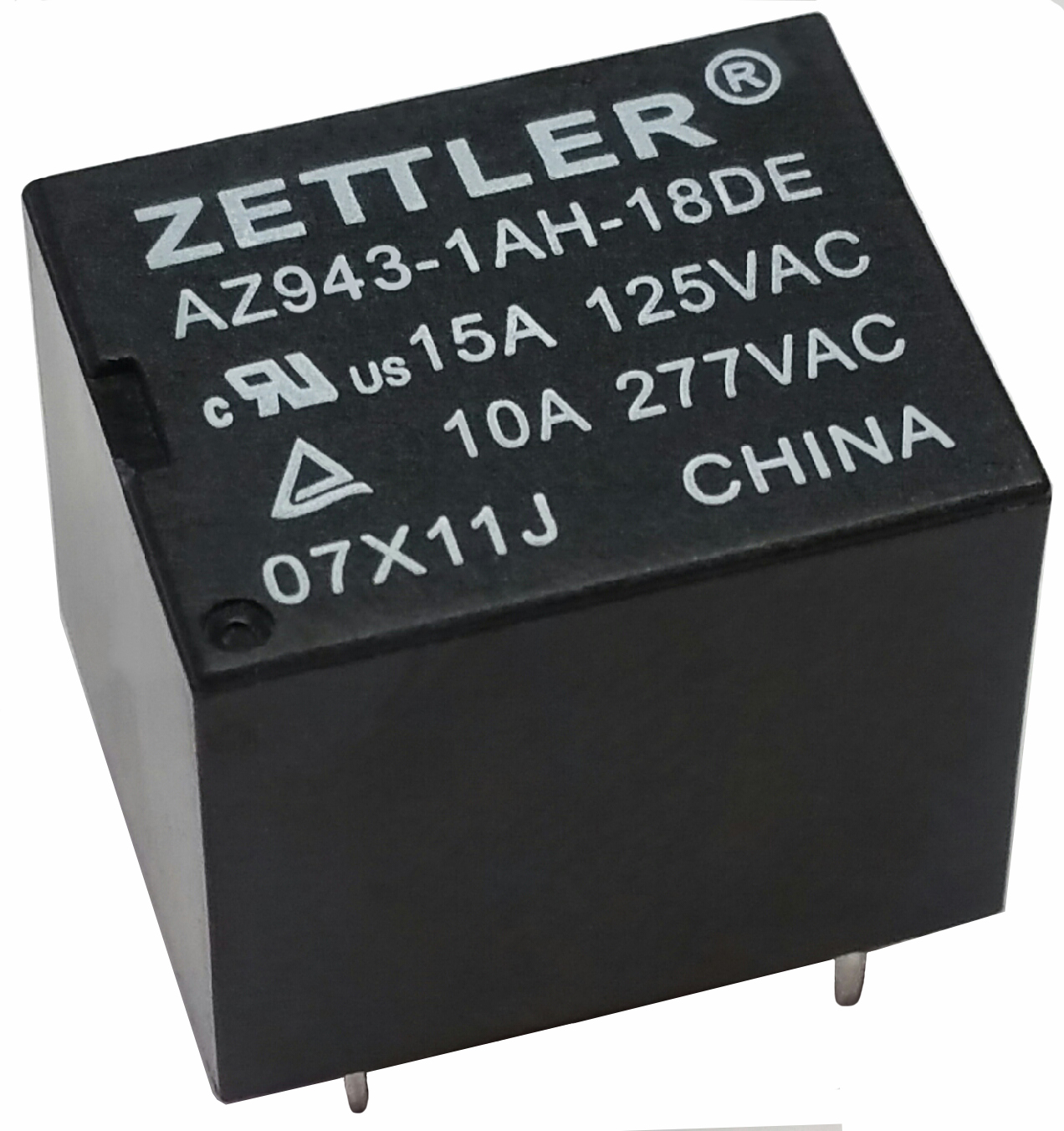

| AZ943 |  | | 15A | SPST/SPDT | UL/CUR/TÜV | Yes |
| AZ9431 |  | | 15A | SPST/SPDT | UL/CUR/TÜV | Yes |
| AZ943S |  | | 15A | SPST/SPDT | UL/CUR/TÜV | Yes |
| AZ943T |  | | 20A | SPST/SPDT | UL/CUR | Yes |

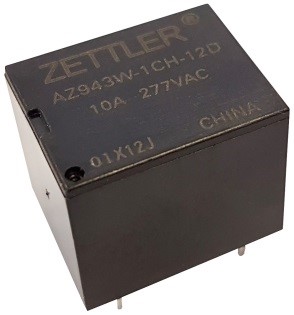

| AZ943W |  | | 10A | SPST/SPDT | UL/CUR/TÜV pending | Yes |
| AZ9471 |  | | 25A | SPDT | - | Yes |
| AZ948 |  | | 16A | SPST | UL | Yes |
| AZ9481 |  | | 16A | SPST/SPDT | UL/CUR/TÜV | Yes |
| AZ9481F |  | | 16A | SPST | UL/CUR/TÜV | Yes |
| AZ970/AZ971 |  | | 45A | SPST/SPDT | - | Yes |
| AZ9701/AZ9711 |  | | 45A | SPST/SPDT | UL/CUR | Yes |
| AZ9701E/AZ9711E |  | | 45A | SPST/SPDT | UL/CUR | Yes |
| AZ970E/AZ971E | | | 45A | SPST/SPDT | - | Yes |

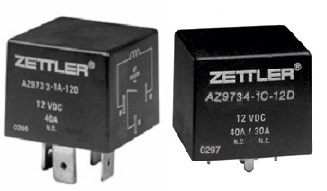

| AZ9733 |  | | 40A | SPST/SPDT | - | Yes |
| AZ975/AZ976 |  | | 20A | 1 Form A,B,C,V,W,X | - | Yes |
| AZ9751/AZ9761 | | | 20A | 1 Form A,C,U,W | Tested in accordance with IEC | Yes |
| AZ977 |  | | 20A | SPDT | - | No |
| AZ978 |  | | 20A | SPST/SPDT | - | No |

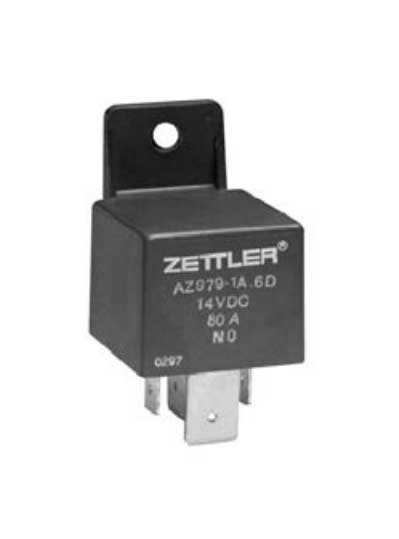

| AZ979 |  | | 80A | SPST/SPDT | - | Yes |

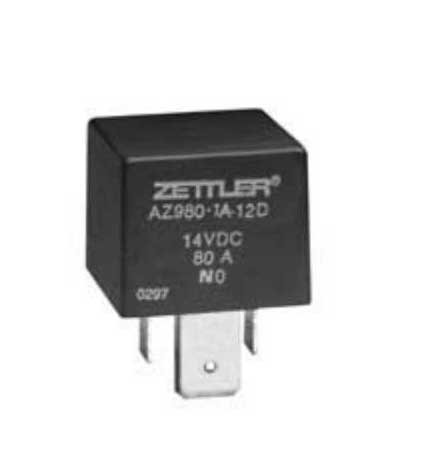

| AZ980 |  | | 80A | SPST/SPDT | - | Yes |
| AZ9801 |  | | 70A | SPST | - | Yes |
| AZ983 |  | | 80A | SPST/SPDT | - | Yes |
| AZ9831 |  | | 70A | SPST | - | No |
| AZ9861 |  | | 40A | SPST/SPDT | - | Yes |
| AZDC007 |  | | 50A | SPST | CQC | No |
| AZDC105 |  | | 150A | SPST | UL/CUR, TUV | No |
| AZDC110 |  | | 16A | SPST | UL/CUR, TUV | No |
| AZDC6 |  | | 12.5A | DPST | CSA | No |
| AZEV116 |  | | 16A | SPST | UL/TUV | No |
| AZEV132 |  | | 32A | SPST | UL/TUV | No |
| AZEV140 |  | | 40A | SPST | UL/TUV | No |
| AZEV200 |  | | 40A | DPST | UL/TUV/CQC | No |
| AZKUP |  | | 13A | 1-3PDT | UL/CUR | No |
| AZPRD | | | 50A | 1 Form A,B,C,X,Y, 2 Form A,B,C | UL/CUR | No |
| AZSR1160 |  | | 160A | SPST | UL/CUR, VDE | No |
| AZSR1180 |  | | 180A | SPST | UL/CUR, VDE | No |
| AZSR1200 |  | | 200A | SPST | UL/CUR, VDE | No |
| AZSR143 |  | | 50A | SPST | UL/CUR, TUV | No |
| AZSR170 |  | | 70A | SPST | UL/CUR, TUV, CQC | No |
| AZSR235 |  | | 35A | SPST/DPST | UL/CUR, VDE | No |
| AZSR250 | | | 55A | SPST/DPST | UL/CUR, VDE | No |
| XMC0 |  | | 25-90A | 3PST | UL/CUR | No |
| XMC0 | | | 25-90A | 2PST | UL/CUR | No |
| XMC0 | | | 25-90A | 1PST w/Shunt | UL/CUR | No |
| XMC0 | | | 25-90A | SPST/SPDT w/shunt DPST, 3PST, 4PST | UL/CUR | No |
